High-resolution Digital Microscope DS-300
- Micro Square Co., Ltd.



Entry model for zoom-type digital microscope

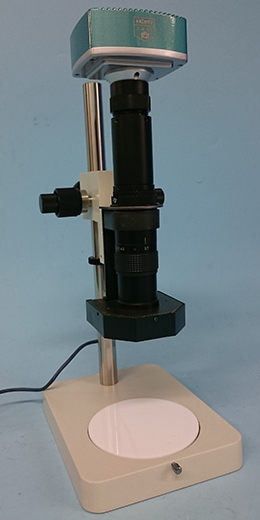

Product Appearance





Specifications

Connection Computer
Camera /
Interface		 2 million pixels Digital CMOS / USB 2.0
Operating Environment:
Display Resolution (PC Monitor)
 1600×1200
Operating Environment: Computer OS: Windows XP SP2 Windows 2000 SP4
CPU: Pentium 2.0 GHz and higher
Memory: 512 MB and higher
Size Total Length: 260 mm
Weight Approximately 800g,* dimmer box not included
Illumination White LED
Magnification Standard: 50 - 300 times on 17 inch PC monitor*
Package Software Measurement Software: MicroScale2
Functions: Distance between two points, Radius and Area of a Circle, Quadrangular Distance of Length and Breadth and angles of three points of area , Two Line-angle, TEXT Input, Two Screen Comparison, Marker Indication, Calibration Data Recording, Image Capture, Transfer of Data to EXCEL
Viewer Software
Functions: Image capture, Resolution selection
Other Accessories Glass scale for calibration, Dimmer box, AC adapter, Storage case
* Cable for the computer connection comes from the main body.



Sample Image

IC
IC
 Drill
Drill
 Plastic Material
Plastic Material
Coin
Coin
 Implementation Parts (When using Free Stage )
Implementation Parts (When using Free Stage )

Important Note about the Power Supply and Repair

Power supply of some products is adapted to Japanese 100V specifications. In case of using it outside of Japan, please be sure to use a voltage converter for each country/area.
Also, when you need to repair the products purchased from Pulse Denshi, please send them back to us so we can offer repair cost estimates. Your local service center may not accept such repair.
