PXCB30UETP-B/PXCC15UETP-B Series
- Primetech Engineering Corporation



Product Appearance
Product Appearance
Option
Product Appearance
Option



Basic Specifications

Series Name PXCB30UETP-B Series PXCC15UETP-B Series
Image Sensor Progressive Scan 1/1.8 inch CCD
Number of Effective Pixels 2M: 1628 (H) x 1236 (V)
B/W / Color B/W
Color
Frame Rate 30 FPS
15 FPS
Output Tap 2 Taps
Lens Mount C-mount
Sync Method Internal / External Synchronization
Video Output RAW Data LVDS 8 bit / 10 bit
Trigger External Trigger
Shutter Speed 1/20000 - 2 s
Gain 0 dB to +12 dB
Power Supply Voltage DC + 12 V (in case of DC IN port)
Power Consumption TBD
External Dimensions Height 45 mm x Width 45mm (Thickness of the board 1.6 mm)
Mass TBD
<Interface>
Conformed to PoCL. Interface board of CL (Camera Link) is also available as an option.
Interface board of DC IN is also available as an option.




Dimensional Outline Drawing

Dimensional Outline Drawing

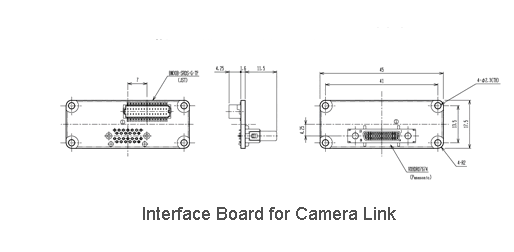

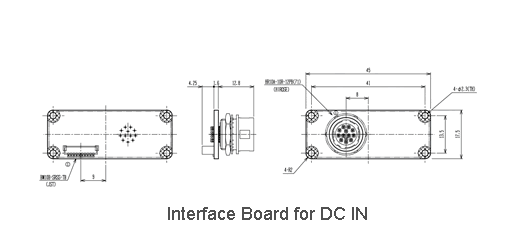

Dimensional Outline Drawing for Optional Items

Dimensional Outline Drawing

Dimensional Outline Drawing
