CLE-560B TX/RX
CameraLink EXTENDER Opt.
(STAC Corporation)

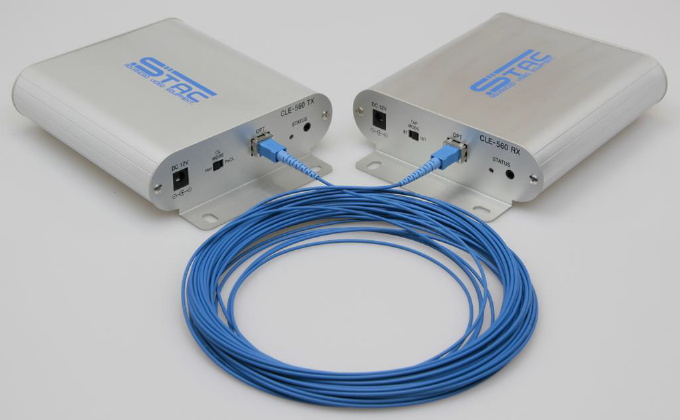

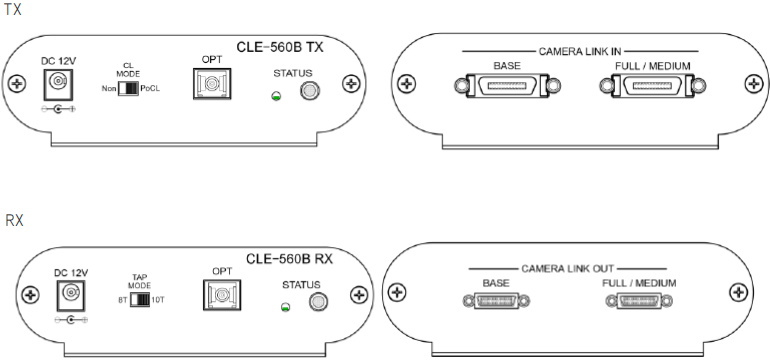

Product Appearance



Overview

CLE-560B TX/RX is cable extender for CameraLink Full Configuration (10tap) that enable image transfer and camera control up to 300m by optical fiver cable transfer(multi mode). It also supports PowerOverCameraLink (PoCL).



Features

use the 1-core optical cable.
Max85MHz, CameraLink Full Configuration Ver2.0 (10Tap) compliant.
PoCL compliant/no compliant is switchable with SW.

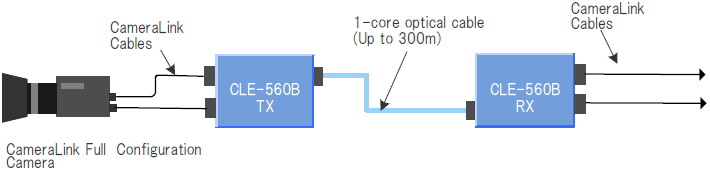

Standard connection example
Standard connection example
Standard connection example



Specifications

Items CCLE-560B TX/RX
CameraLink connecter MDR/SDR
CameraLink CameｒaLink Full Configuration Ver 2.0(10Tap)
Input/Output signal compliant
Optical input/output Optical serial data signal input/output
Connector： SC (Class1M laser output)
Optical fiver 1-core
Input CLK frequency 20MHz-85MHz (MAX)
Serial communication SerTC, SerTFG (CameraLink compliant)
Power supply DC12V/12W (TX,RX)
Temperature/Humidity 0℃-40℃, 20%-80% (No condensation)
Size (except outshoot) 130(W)×40(H)×136(D) mm
Weight 0.4kg(TX,RX)
Accessories AC adapter × 1, Instruction manual × 1
* Product appearance and specifications are subject to change without notice.
