Black & White Security Cameras

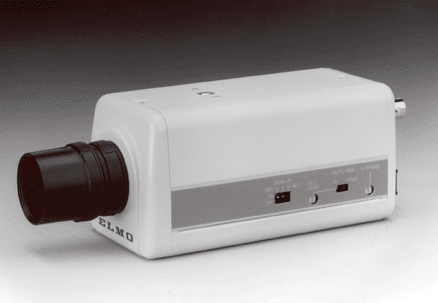

SE420, 1/2"CCD 0.06lux 570TVL(H) 24VAC
CCD black & white video camera
Low light sensitive CCD B&W Camera from ELMO featuring high resolution, backlight compensation and automatic electronic shutter. All adjustments are external for ease of installation.
|
|
|
| AES (Automatic Electronic Shutter) |
Provided (Factory-set at OFF)
|
| AGC |
Built-in
|
| Ambient humidity |
30%~90%
|
| Ambient temperature |
-10 C~50 C(14 F~122 F)
|
| Auto-iris terminal |
4P square connector
|
| Backlight compensation |
Provided (Factory-set at OFF)
|
| Dimensions |
60(W)x60(H)x120(D)mm(2.4x2.4x4.7in)
|
| Effective picture element |
768(H) x 494(V)
|
| Electronic shutter |
8 steps (1/60~1/10000 sec)
|
| External Sync. input |
VBS 1V (p-p) 75 ,BNC Connector
|
| Lens mount |
CS
|
| Minimum illumination |
0.06 Ix (F1.2 under incandescent lamp, w/Sens-up ON)
|
| Output signal |
VBS 1V (p-p) 75 ,BNC Connector
|
| Pick-up device |
1/2" Black & White Interline Transfer CCD
|
| Power |
AC24V 10%Hz 0.5Hz
|
| Power consumption |
Aprox. 4.3W
|
| Power terminal |
3P screw terminal
|
| Resolution |
More than 570TV(H) lines
|
| S/N ratio |
More than 50dB
|
| Scanning area |
6.45mm(H)x4.84mm(V)
|
| Scanning frequency |
15.75kHz(H), 60Hz(V)
|
| Scanning system |
2:1 interlaced
|
| Sens-up |
Provided (Factory-set at OFF)
|
| Sync. system |
Line-lock/Internal/External
|
| Weight |
520g(1.17lbs)
|
|
