Color Security Cameras

TNC4604, 1/3 TNC4604, 1/3"CCD 0.7lux 480TVL(H) 24VAC/12VDC

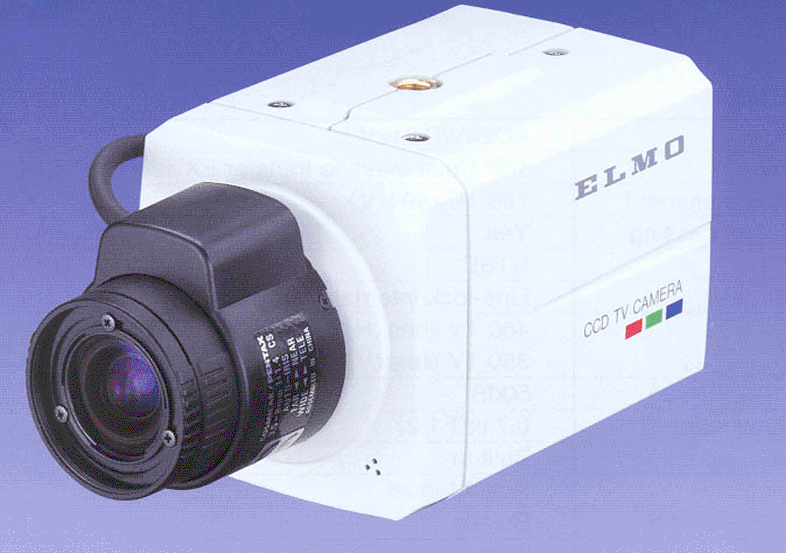

Color CCD Video Camera

4000 Series Color CCD Camera with High-resolution,High-sensitivity,High S/N,Dual voltage,Compact Body and EXview HAD CCD. And with Esay Back Focus Adjustment,Built-in Isolation,AES,BLC,Selectable WB.

AES Switch   Built-in
AGC Switch   Built-in
Backlight Compensation   Built-in
Digital Signal Processing   Yes
Dimensions   60x60x90mm (2.36x2.36x3.54")
Effective Picture Element   768(H) x 494(V)
Iris Selector   Built-in
Lens Back Focus Adjustment   Built-in
Lens Mount   CS
Mass/Weight   300g(0.66lbs)
Minimum Illumination   0.7lx (F1.2)
Pick-up Device   1/3" Color Interline Transfer EXview HAD CCD

Power Source   AC24V/DC12v
Resolution   480 TV lines(H)
350 TV lines(V)
S/N ratio   50dB
Sync. System   Line-lock/Internal
TV System   NTSC
Video Output   BNC
White Balance   Auto/Manual

^ GO TO TOP



*The above content may change due to improvement without notice.
