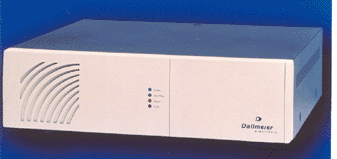

Dallmeier DLS-18 Digital Video Recorder
Digital Video Recorder fro Long-term recording
The DLS 18 is an ideal long-term recording system for small and
large-sacle CCTV operations. With recording capacities of 9 to 2,800 hours,
depending on the picture sizeand quality,they are able to meet even the higest demands.
By limiting the integral motion dector ensures that the hard disk capacity is used efficiently.
If an alarm is triggered, picture data is saved on a separate recording track.
|
|
|
| Memory Gruops |
Ring memory, alarm memory
|
|
MEMORY CAPACITY
|
| Hard disk |
Supplied with 80 Gbyte min Expandable to 320 Gbyte (internal)
|
|
MULTIPLEXER
|
| Camera Inputs DLS 18 |
18 video inputs 1Vpp-75Ohm.
|
| Monitor Outputs |
2 video outputs 1 Vpp-75Ohm BNC, Independently configurable.
|
|
PASSWORD PROTECTION
|
| Administrator level |
up to 20 characters
|
| Guest level |
up to 20 characters, with second validation
|
| Installer level |
up to 20 characters, with second validation
|
| Operator level |
up to 20 characters, with second validation
|
|
PICTURE MEMORY
|
| Compression |
Set indvidualy for each track
|
| Compression Levels |
5 levels - freely configurable
|
| Compression progress |
Wavelet 4:2:2
|
| Picture memory |
Field mode
|
| Resolution |
720(H)X288(V)
|
| Video Standard |
CCIR/PAL and EIA/NTSC
|
|
RECORDING
|
| Contact |
Set for each camera
|
| Motion dectection |
Set for each camera
|
| Permanent |
Set for each camera
|
| Weekly timer |
Set for each camera
|
|
RECORDING TIME
|
| With motion detection |
Depending on activity, but always longer then in long-term recording mode
|
| Without image comprarison in long-term recording mode |
Approx. 9 to 2,800 hours depending on chosen picture
quality, medum picture with 25KB/field (better then VHS, to
German ATM applications standard)
|
|
REMOTE ACCESS
|
| Interfaces |
Lan, ISDN. RS-232, POTS
|
| Software |
PViev software
|
|
SEARCH CRITERIA
|
| Search by |
Date,time, camera number
Customer's own requirements by request
|
|
SEQUENCER
|
| Event Switching |
Camera picture switch-on via motion dector on the monitor output
|
| Sequencer |
Switching time configurable
|
|
