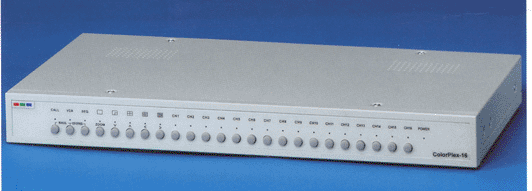

COLORPLEX-16, 16ch color duplex multiplexer
16-Channel Color Duplex Multiplexer
High Performance Multiplexer combines 16 cameras into a viewable
matrix and provides the highest resolution available today, an industry-leading
910 X 512 NTSC.
|
|
|
| 19" Rack Mountable |
Yes
|
| Dimensions (H,W,D) |
1.75" X 17" X 7.9"
|
| Duplex Operation |
Yes
|
| Number of Alarm Input |
16
|
| Operating Temperture |
32F to 122F
|
| Power Adapter |
AC100~240V Input, DC12V Output
|
| Power Consumption |
12V DC, 20W
|
| Rack Mounting Kit |
Optional
|
| Remote Control |
Optional
|
| Sendor Type |
N.O or N.C
|
| VCR Record Time |
2~999hrs NTSC (3~999hrsPAL)
|
| Weight |
8.33lbs
|
|
CAMERA TYPE
|
| B/W & Color Applicable |
Video Input
Camera Input : 1Vp-p, 75ohm x 16
VCR Input : 1Vp-p, 75ohm x 1
S-VHS Terminal Input : Y:1.0Vp-p,75ohm,C:0.286Vp-p.75ohm
|
|
VCR SYNCHRONIZATION
|
| Key Lock |
Yes
|
| Motion Detection |
Yes
|
| Piroity Recording for sensor-activeated Chanel |
Yes
|
| Programmable Field Delay |
Yes
|
| Switching Pulse Input |
Yes
|
| VCR Speed Auto Detection |
Yes
|
|
VIDEO OUTPUT
|
| 2xZoom |
Yes
|
| Adjustable Dwell Time |
01 to 99 Seconds
|
| Built-in Buzzer |
Yes
|
| Call Monitor |
1Vp-p 75ohm x 1
|
| Camera Title |
Yes
|
| Covert Camera |
Yes
|
| Loop Through Out |
1Vp-p 75ohm x 16
|
| Main Monitor |
1Vp-p,75ohm x 1
|
| Number of Color |
16.7 Million/pixel
|
| Relay Output |
3
|
| Resolution |
910 x 512(NTSC)/910 x 612 (PAL)
|
| RS-232C Port |
Yes
|
| S-VHS Terminal Output |
Y:1Vp-p,75ohm,C:0.286Vp-p,75ohm
|
| Time/Date |
Yes
|
| VCR Output |
1Vp-p 75ohm x 1
|
|
^ GO TO TOP
|
*The above content may change due to improvement without notice.
|
