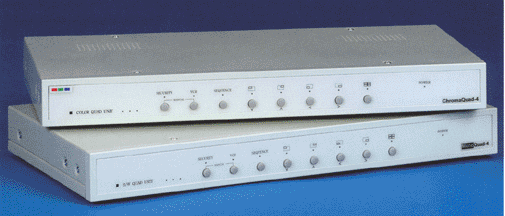

CROMAQUARD-4, Color quad controller
HIGH-RESOLUTION QUARD VIDEO PROCESOR
This 4-input color quard video processor delivers very high
resolution, 1024x512 real time. It features: On-screen display,
S-VHS VCR input and Output, real time refresh and full alarm operations.
Includes a video flicker filter and independent adjustment.
|
|
|
| Adjustable Alarm Duration |
Yes
|
| Alarm Control Output |
NO and NC contacts:1A@DC24V Max
|
| Alarm Sensor Input |
Contact closure activated alarm input x 4
|
| Alarm Sensor Input type |
Normal Open / Normal Close
|
| Alarm Types |
Video loss and Alarm sensor contact detection
|
| Bright, Contrast, Color and Hue Adjustment |
Independent for each camera
|
| Buzzer ON/OFF Switch |
Yes
|
| Camera Dwell Time |
Yes
|
| Camera Terminations |
75ohm/Hi-impedance Selectable for each camera
|
| Camera Title |
10 Characters for each camera
|
| Camera Type |
Color
|
| Digital Memory |
1024 X 512
|
| Dimension (H,W,D) |
1.75" X 17" X 7.9"
|
| Number of Colors |
16.7 Million Colors
|
| Operating Temperature |
32F~122F
|
| Power Adapter |
120~230V AC Input, DC12V Output, UL, CSA&CE Approved
|
| Power Consumption |
DC12V / 8W
|
| Rack Mountable |
EIA 19" wide standard mounting rack
|
| Refresh rate |
30(25)/60(50)Selectable
|
| Remote Control / RS-232C |
Maximum distance: 1000ft
|
| Security Lock |
Yes
|
| S-VHS Y/C Input |
Y:1Vp-p,75ohm C:0.286Vp-p,75ohm
|
| Time/Date |
Built-in Clock With Back-up battery
|
| VCR Play Back Input |
1Vp-p, 75ohm
|
| Video Filter |
Yes
|
| Video Format |
NTSC/PAL x 4
|
| Video Gain Adjustment |
Automatic
|
| Video Output |
Video out to monitor x 1, 1Vp-p,75ohm Termination
Quard Video Out to VCR x 1, 1Vp-p,75ohm Termination
Video Input Loop through x 4, 1Vp-p,75ohm Termination
|
| Weight |
5.5lbs
|
|
