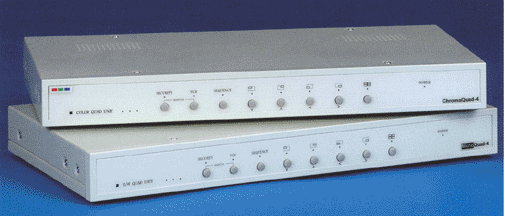

MonoQuad-4, B/W quad controller
MonoQuad-4 is a full function high-resolution 4-input quad processor.
MomoQuad-4 is a high resolution (1024x512) real time, 4-input unit.
Real time refresh, full alarm operations, on-screen Time, title and setupmenu.
|
|
|
| Adjustable Alarm Duration |
Yes
|
| Alarm Control Output |
NO and NC contacts:1A@DC24V Max.
|
| Alarm Sensor Input type |
Normal open / Normal close
|
| Alarm Types |
Video loss and alarm sensor contact detection
|
| Buzzer On/Off Switch |
Yes
|
| Camera Dwell Time |
Yes
|
| Camera Terminations |
75ohm/Hi-impedance Selectable for each camera
|
| Camera Title |
8 Characters for each camera
|
| Camera Type |
B/W
|
| Digita Memory |
1024x512
|
| Dimension (H,W,D) |
1.75"x17"x7.9"
|
| Number of colors |
256 grayscales
|
| Operatiog Temperature |
32F to 122F
|
| Power Adaptor |
120V~230VAC input, DC12V Output, UL CSA&CE Approved
|
| Power Consumption |
DC12V/4W
|
| Rack Mountable |
EIA 19" Standard muonting rack
|
| Refresh rate |
30 (25)
|
| Remote Control / RS-232C |
Maximum Distance 1000ft
|
| Security Lock |
Yes
|
| Time/Date |
Built-in Clock with back up battery
|
| VCR Play Back Input |
1Vp-p, 75ohm
|
| Video Format |
EIA/CCIR x 4
|
| Video Gain Adjustment |
Manual
|
| Video Output |
Video output to monitor x , 1Vp-p,75ohm Termination
Quad video out to VCR x 1 1Vp-p, 75ohm Termination
Video input loop through x 4, 1Vp-p, 75ohm Termination
|
| Weight |
5.5lbs
|
|
