2/3" Manual Iris Lens C814
2/3" Manual Iris Lens C1614A
Accessories (close-up ring) EX-C6

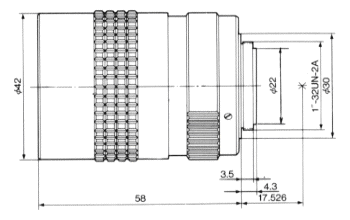

2/3" Manual Iris Lens

C814 (Pentax Precision)

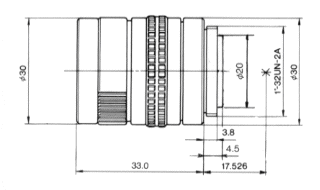

2/3" Manual Iris Lens

C1614A (Pentax Precision)






[Specification List]

ItemC814C1614A
Focus distance8mm16mm
Maximum Diameter Ratio1:1.41:1.4
Iris RangeF1.4~closeF1.4~22
Method to adjustiris-manualmanualmanual
focus-manualmanualmanual
Zoom----
1/3"
Inclusive Angle		The opposite angle 41 degrees 17 minutes21 degrees 05 minutes
Horizontal33 degrees 23 minutes17 degrees 03 minutes
Vertical25 degrees 09 minutes12 degrees 42 minutes
1/2"
Inclusive Angle		The opposite angle 53 degrees 07 minutes28 degrees 04 minutes
Horizontal43 degrees 36 minutes22 degrees 37 minutes
Vertical33 degrees 23 minutes17 degrees 03 minutes
2/3"
Inclusive Angle		The opposite angle 70 degrees 30 minutes38 degrees 12 minutes
Horizontal58 degrees 41 minutes30 degrees 48 minutes
Vertical45 degrees 11 minutes23 degrees 24 minutes
Closest Distance0.2m0.3m
Back Focus14.6mm13.2mm
Flange Back17.526mm17.526mm
Filter Sizediameter 40.5mm P=0.5mmdiameter 27mm P=0.5mm
Effective Lens DiameterFront Lensdiameter 24.0mmdiameter 14.0mm
Back Lensdiameter 14.8mmdiameter 15.4mm
Temperature for normal operation-20 degrees centigrade~+50 degrees centigrade-20 degrees centigrade~ +50 degrees centigrade
Outside Dimensiondiameter 42 x 58mmdiameter 30 x 33mm
Weight150g58g


Accessories

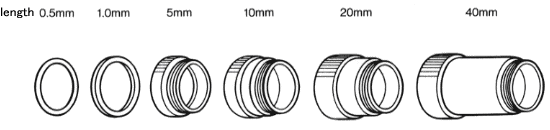

Close-Up Ring EX-C6 (Pentax Precision)



To make distance between Camera and object closer than the Lens Focus Distance, there is a ring available to enable close distance observation possible. There are 6 different length of ring available as set, so you can adjust combination of the rings depending upon your purpose.




*The above content may change due to improvement without notice.
