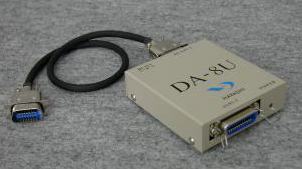

8 Bit D/A Converter Unit DA-8U
(Hayashi Watch Co., Ltd.)

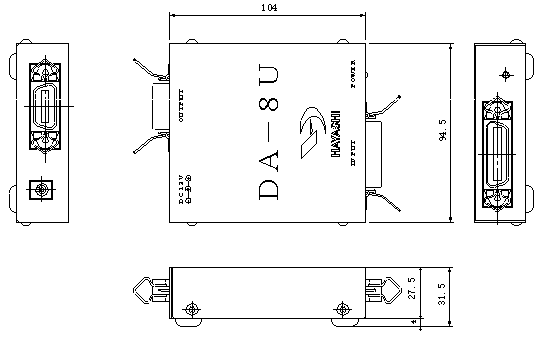

Dimensional Outline Drawing

Dimensional Outline Drawing


Input (Light Quantity Adjustment)
256 Phases
8 Bit Points of Contact or Tr Opening Collector (Negative Logic)
Power Supply Voltage 12 VDC ± 7%
Power Consumption 1.2 W
Temperature Range -10 to +45°C
External Dimensions W 94.5 x H 31.5 x D 104 mm
Weight 320g
AC Adapter Model: DC-12025 100 VAC ± 10% 50 / 60 Hz
Broadcast Cable for LA-150UE / PS-150UE-DC / LA-150FBU
Connector Model: 57-30240 (DDK)

Important Note about the Power Supply and Repair

Power supply of some products is adapted to Japanese 100V specifications. In case of using it outside of Japan, please be sure to use a voltage converter for each country/area.
Also, when you need to repair the products purchased from Pulse Denshi, please send them back to us so we can offer repair cost estimates. Your local service center may not accept such repair.
