CMOS Camera with 2 Million Pixels
High-resolution Digital Microscope DS-600
- Micro Square Co., Ltd.



2 Million Pixels CMOS Camera
High-definition USB Digital Microscope
50 - 3,400 times (by lens exchange)

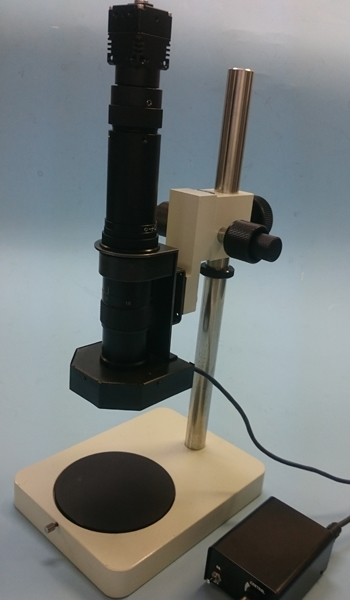

Product Appearance




Specifications

Connection Computer
Camera /
Interface		 2 million pixels Digital CMOS / USB 2.0
Operating Environment:
Display Resolution (PC Monitor)
 1600×1200
Operating Environment: Computer OS: Windows XP SP2 Windows 2000 SP4
CPU: Pentium 2.0 GHz and higher
Memory: 512 MB and higher
Size Full Length 200 Body Part φ45 Illumination Part φ76 (mm)
Weight Approximately 0.8 kg (Body Part only)
Illumination White LED (Lighting unit part is removable)
Magnification Standard: 50 - 420 times on 17 inch PC monitor*
In case of using 0.5 times adapter: 25 - 210 times
In case of using 2 times adapter: 100 - 840 times
Package Software Measurement Software: MicroScale2
Functions: Distance between two points, Radius and Area of a Circle, Quadrangular Distance of Length and Breadth and angles of three points of area , Two Line-angle, TEXT Input, Two Screen Comparison, Marker Indication, Calibration Data Recording, Image Capture, Transfer of Data to EXCEL
Viewer Software
Functions: Image capture, Resolution selection
Other Accessories Glass scale for calibration, Dimmer box, AC adapter, Storage case
* Cable for the computer connection comes from the main body.

Zoom Indication Range of Vision on 17 inch PC monitor
0.8 6.0 x 8.0 55
1 4.8 x 6.4 65
1.5 3.2 x 4.3 100
2 2.4 x 3.2 135
3 1.6 x 2.1 200
4 1.2 x 1.6 265
5 1.0 x 1.3 335
6 0.8 x 1.1 400
6.4 0.75 x 1.0 425



Sample Image

Fiber
Fiber
 Plastic
Plastic
 Blade Edge
Blade Edge
Drill
Drill
 Shell
Shell
 Metal
Metal
(When using Angle LED ring light guide)
Drill Tip
Drill Tip
(When using diffusion dome illumination)
 Implementation Parts
Implementation Parts
 Coin
Coin
Implementation Parts
Implementation Parts
(When using tilt stands)
 Screw Part
Screw Part
(When using diffusion tunnel illumination)
 Drill
Drill

Important Note about the Power Supply and Repair

Power supply of some products is adapted to Japanese 100V specifications. In case of using it outside of Japan, please be sure to use a voltage converter for each country/area.
Also, when you need to repair the products purchased from Pulse Denshi, please send them back to us so we can offer repair cost estimates. Your local service center may not accept such repair.
