PXCB90VTHP-B/PXCC60VTHP-B Series
- Primetech Engineering Corporation



Product Appearance
Product Appearance
Option
Product Appearance
Option



Basic Specifications

Series Name PXCB90VTHP-B Series PXCC60VTHP-B Series
Image Sensor Progressive Scan 1/3 inch CCD
Number of Effective Pixels VGA: 659 (H) x 494 (V)
B/W / Color B/W
Color
Frame Rate 90 FPS
60 FPS
Output Tap 2 Taps
Lens Mount C-mount
Sync Method Internal / External Synchronization
Video Output RAW Data LVDS 8 bit / 10 bit
Trigger External Trigger
Shutter Speed 1/20000 - 2 s
Gain 0 dB to +12 dB
Power Supply Voltage DC + 12 V (in case of DC IN port)
Power Consumption TBD
External Dimensions Height 45 mm x Width 45mm (Thickness of the board 1.6 mm)
Mass TBD
<Interface>
Conformed to PoCL. Interface board of CL (Camera Link) is also available as an option.
Interface board of DC IN is also available as an option.




Dimensional Outline Drawing

Dimensional Outline Drawing

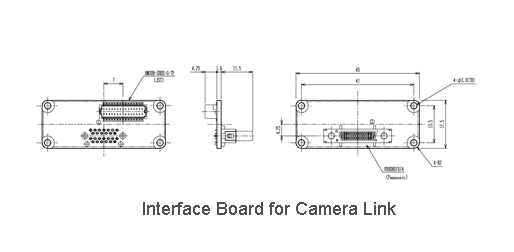

Dimensional Outline Drawing for Optional Items

Dimensional Outline Drawing

Dimensional Outline Drawing



Important Note about the Power Supply and Repair

Power supply of some products is adapted to Japanese 100V specifications. In case of using it outside of Japan, please be sure to use a voltage converter for each country/area.
Also, when you need to repair the products purchased from Pulse Denshi, please send them back to us so we can offer repair cost estimates. Your local service center may not accept such repair.
