CLE-160A TX/RX
CameraLink EXTENDER Opt.
(STAC Corporation)

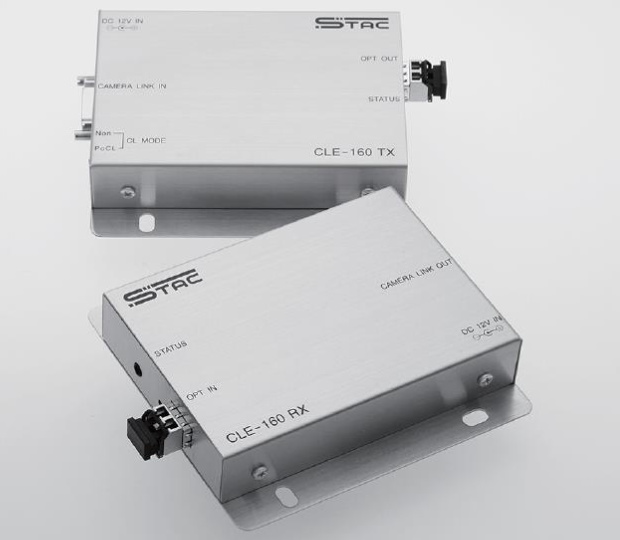

Product Appearance



Overview

CLE-160A TX/RX is cable extender for CameraLink Base Configuration that enable image transfer and camera control up to 300m by optical fiver cable transfer(multi mode). It also supports PowerOverCameraLink (PoCL).



Features

Camera control from remote location by two-way communication.
Correspond to the clock frequency of 85MHz or less.
Clock signal quality is improved by jitter cleaner function, it realized stable image data transfer even by cameras with large clock jitter.
PoCL compliant/no compliant is switchable with DIP SW of the bottom on unit TX/RX.

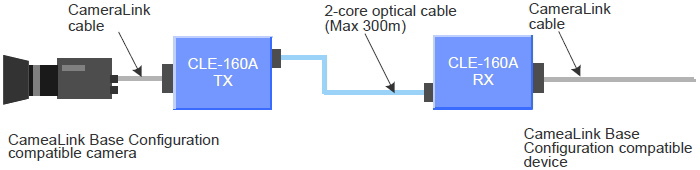

Standard connection example
Standard connection example
Standard connection example



Specifications

Items CLE-160A TX/RX
CameraLink connecter MDR/SDR
CameraLink CameaLink Base
Input/Output signal Configuration compliant
Optical input/output Optical serial date signal input/output
connector:LC-Duplex
Optical fiver 2-core
Input CLK frequency MAX 85MHz
Serial communication SerTC, SerTFG (CameraLink compliant)
Power supply DC 12V (with attached AC adapter)
Temperature/Humidity 0℃-40℃, 0%-80% (No condensation)
Size (except outshoot) 90(W)×25(H)×125(D) mm
Weight 0.5kg(TX,RX)
Accessories AC adapter × 1, Instruction manual × 1
* Product appearance and specifications are subject to change without notice.
