CLE-414B TX/RX
CameraLink EXTENDER Opt.
(STAC Corporation)

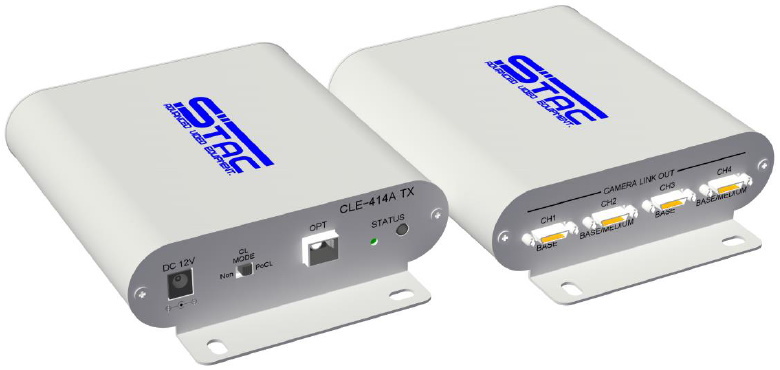

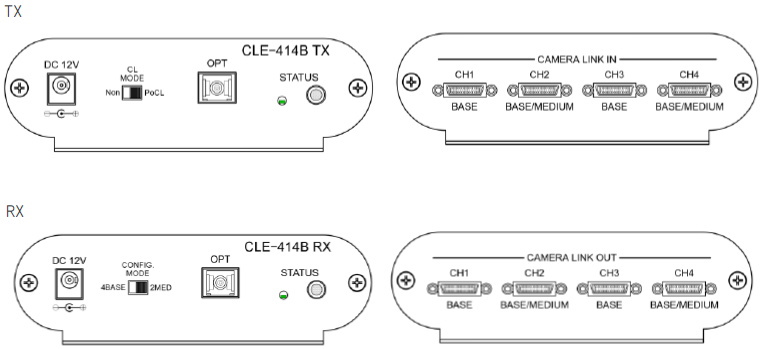

Product Appearance



Overview

CLE-414B TX/RX converts signals from the CameraLink Base Configuration 4 system or the Medium Configuration 2 system into optical signals, and is a cable extension unit that allows image transfer and camera control to points up 300m away using a 1 fiber optic cable (Multimode). PowerOver CameraLink and PoCL) is also supported.



Features

Two-way communication is possible with 1-core optical cable.
The Base Configuration 85 MHz 4 system image transmission is made possible using 1 fiber.
You can switch the transfer mode between Base 4cH and Medium 2cH by SW.
You can switch between PoCL and Non-PoCL by SW.

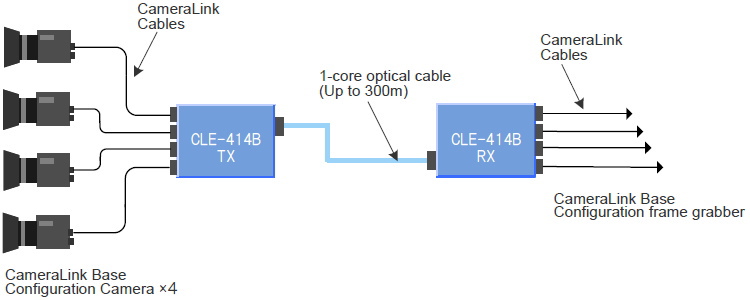

Standard connection example
Standard connection example
Standard connection example



Specifications

Items CLE-414B TX/RX
CameraLink connecter SDR/SDR
CameraLink CameaLink Base / Medium Configuration
Input/Output signal compliant
Optical input/output Optical serial data signal input/output
Connector： SC (Class1M laser output)
Optical fiver 1-core
Input CLK frequency 20MHz-85MHz (MAX)
Serial communication SerTC, SerTFG (CameraLink compliant)
Power supply DC12V/12W (TX,RX)
Temperature/Humidity 0℃-40℃, 20%-80% (No condensation)
Size (except outshoot) 130(W)×40(H)×136(D) mm
Weight 0.4kg(TX,RX)
Accessories AC adapter × 1, Instruction manual × 1
* Product appearance and specifications are subject to change without notice.
